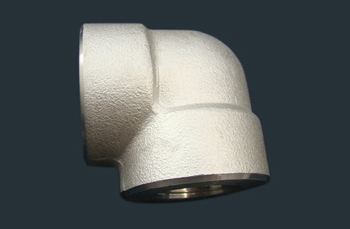

Forged Fittings (Socket and screwed fittings)
We supply a variety of forged fittings, these fittings are mostly in use of high pressure and made of forged material or seamless tube.
Standards: ANSI B16.11, MSS SP-83, BS3799
Size: 1/8" - 4" (DN15~DN100) as per ASME/ANSI B16.11
Pressure: 2000lbs, 3000 lbs, 6000 lbs for threaded fittings, 3,000lbs， 6,000 lbs, and 9,000 lbs for socket welding fittings
Length tolerances: ± 1 mm
End Connections： Threaded and Socket Weld
Threads:
The threaded ends of the unions and fittings can be made to DIN, NPT, API, BSP or other relevant standards. Overall length of the components may therefore differ slightly.
Forged Fittings Elbows: 90°, 45°
Tees: Straight and Reducing
Outlets: Welded, Socket, Threaded
Sockolet, Crosses, Couplings, Half Couplings, Caps, Plugs, Bushings, Inserts , Unions, Hex Nipple
